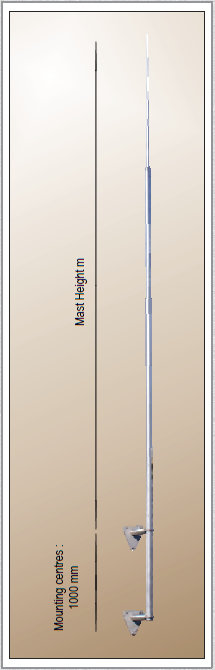

SIDE MOUNTED ADJUSTABLE MAST - IEC 62561-2
Aluminium air termination rod mounted on aluminium poles, supported in stainless steel side mounting brackets.

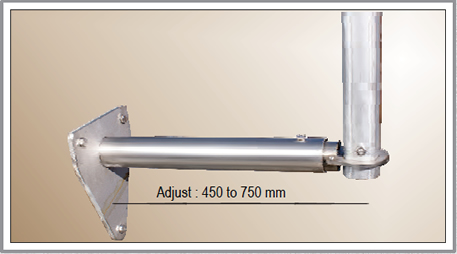

Off-set distance from wall is 450mm and can be extended in 75mm increments to a maximum of 750mm.

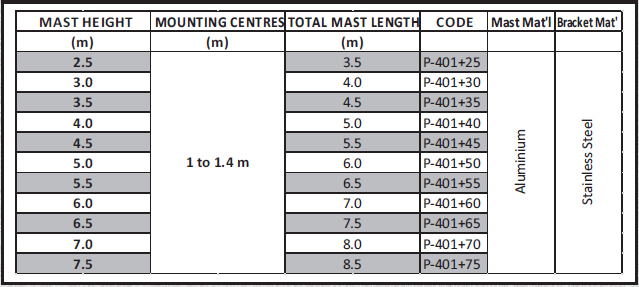

Ordering Code, includes: Side mounting brackets, mast and air termination rod and assembly fasteners.
Installation fasteners:- M10 Anchor bolts (6 off included).
|
Materials
Mast : Aluminium
Brackets: Stainless Steel |
|
| |
|

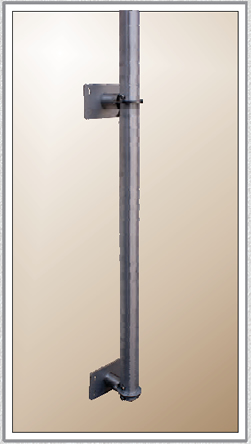

SIDE MOUNTED FIXED MAST - IEC 62561-2
Aluminium air termination rod mounted on aluminium poles, supported in stainless steel side mounting brackets.
Off-set distance from wall is 6 5mm to inner side of mast . M o u n ting: to ‘hand rails’ or ‘anchor’ fixed to structure.

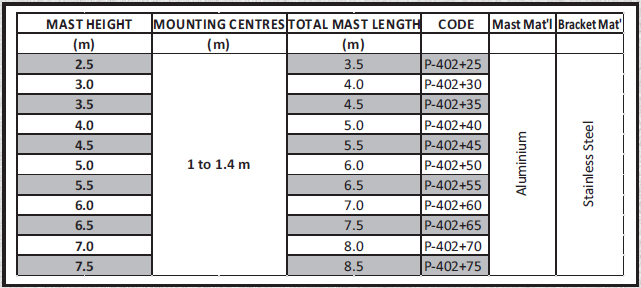

Ordering Code, includes: Side mounting brackets, mast and air termination rod and assembly fasteners.
Installation fasteners:- M10 Anchor bolts or U-Bolts (NOT included). |

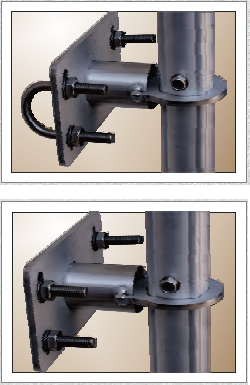

Typical fixing to a ‘railing’.
M10-’U’ bolts not supplied.
Typical fixing to a:
brick,
concrete or
steel’ structure.
M10-Fixing anchors not supplied |
|
|
|
