Lightning Detection & Lightning Warning System

ADEMO CONTROL UNIT

Code: P-250

ADEMO ANTENNA

ADEMO lightning detection system, by INEO, uses an HF receiver that analyses radio waves from lightning bolts of cloud to cloud and cloud to ground lightning in a radius of 10 to 15 km during a storm.

Lightning consists of three or four quick successive high amplitude and high frequency electrical discharges. These strokes are known as return strokes. The electrical radio signal produced by these strokes is processed by ADEMO’s recording and alarm unit. It then displays real time lightning and storm intensity on a galvanometer and three LED’s.

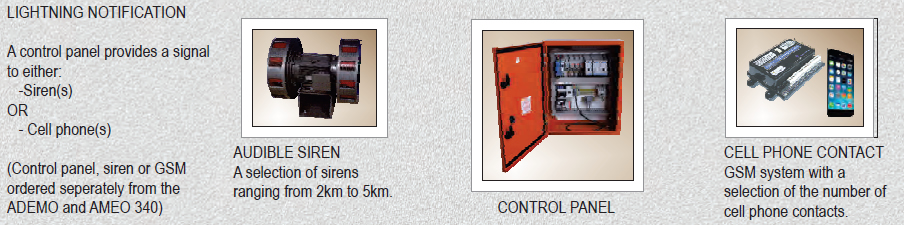

ADEMO’s alarm is set off when a preset alarm threshold is reached. A set of contacts are provided for an external alarm (not included).

APPLICATIONS:
ADEMO can be used as a stand alone support system. It can also be connected to a
central technical management system or automatic protection equipment.
- Sports stadiums
- Industrial plants
- Energy plants
- Transport
- Communication
- Mining

MODULE & ANTENNA

Code: P-252

MODULE

IPSO lightning detection system, by INGESCO, will indicate lightning strikes within a 30 km radius of the antenna and warns the user of the intensity of the electro-atmosphere.

IPSO lightning detector (cloud-ground) is based on the electro-magnetic field reception, generated by a lightning discharge within a 30 km radius.

IPSO detects atmospheric discharges within the 30 km radius that allows the detection of an approaching storm and the activation of the alarm system.

IPSO is light and easy to install. The module can be wall or desk mounted and the antenna can be either directly mounted to the module or externally mounted.

IPSO antenna will detect any lightning strike inside the radius and will indicate through the 7 LED’s, the number of lightning strikes inside the area covered.

IPSO is fitted with two alarm systems that can be connected to two relays for automatic activation of external siren, etc. The user can set alarms to the desired lightning activity level. When each alarm level is reached the corresponding relay is activated.

IPSO is fitted with an internal alarm buzzer that will sound when the set lightning levels are reached.

APPLICATIONS:
IPSO will provide a reliable lightning detection and warning system for:
- Sports stadiums
- Industrial plants
- Energy plants
- Transport
- Communication
- Mining
