BASIC LIGHTNING - application guide - IEC 62305-3

FREE STANDING MAST AND CONDUCTOR APPLICATION

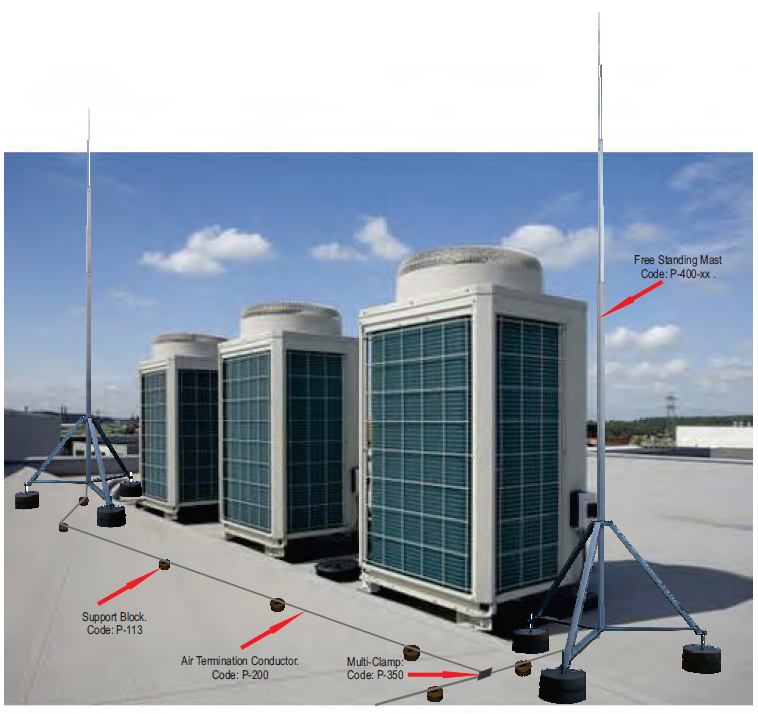

A typical LIGHTNING AIR TERMINATION SYSTEM installation of Free Standing Masts and Conductor.
Free Standing Masts are quick and easy to install. Used for Lightning Protection on roof tops to protect equipment such as
air-conditioners,water chillers, water tanks, metal exhaust ducts etc.





A typical LIGHTNING AIR TERMINATION SYSTEM installation of Free Standing Air Terminal Rods on a roof top providing protection
to photovoltaic solar panels.



See “PROTECTIVE ANGLE” for calculation of air termination rod height.
See “SEPARATION DISTANCE” for safe distance between air termination rods and object.
