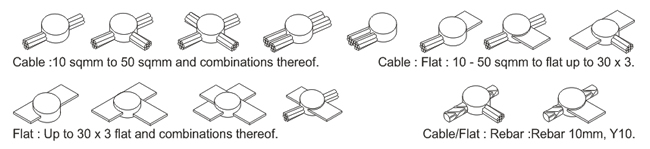

Cu-Tech “Combo-Weld” system will make many different types of connections, e.g.: Cable 10 mm2 to 50 mm2, Flat up to 30 mm x 3 mm,
Rebar Y10 in Straight, T’s, X’s, Parallel and many more can be made from the same mould all using the same size Weld Metal.
- Start-Up Kit contains all the tools and consumables for making 20 connections.
- Replacement items
Mould (after 50 connections)
Fibre Seals (consumable item)
Weld Metals (consumable item, one size weld metal is used on all joints)
How it works:
- Place 1st fibre seal on lower mould
- Place 1st conductor
- Place 2nd conductor
- Place 2nd fibre seal
- Compress the fibre seals using the special “slide mould clamp”.
- Proceed as normal by adding disc, weld metal, starter and ignite.
- Allow 30 seconds to cool and open slide mould clamp.
- Remove used fibre seals to expose welded joint.
(For cross weld, and some others, 3 pieces of Fibre Seal are used alternating between conductors.)


|
